Thyristor Power Module

Description:

Thyristor module is a special package mode and with the same property of phase control thyristor. As same principle of phase control thyristor, thyristor module is also the power semiconductor device composed of four-layers materials with three PN junctions and three external electrodes. The electrode lead from the first layer of P-type semiconductor is anode-A, the electrode lead from the third layer of P-type is control electrode gate-G, and the electrode lead from the fourth layer of N-type is cathode-K. It’s advantage in better static characteristics, and especially dynamic characteristics. It’s properly applied in the excitation, electroplating, electrolysis, electric welding, plasma arc drawing, charging and discharging, and voltage stabilization. It can also be used for AC motor soft start and DC motor speed regulation.



Introduction:

  1. Package structures of thyristor module manufactured by RUNAU Electronics are compress and solder structures. For the average current more than 160A, the compress-structure thyristor module is highly recommended.
  2. Thyristor chip produced under USA manufacturing standard with low VTM, small power consumption and high conversion efficiency.
  3. DCB and ALN substrate in high flatness will ensure the strength and stability of compressed combination with thyristor chip, the excellent thermal conductivity, fast heat dissipation, higher anti-impact of surge current and voltage.
  4. Base plate was isolated and isolation level upon 2500V to protect human safety.
  5. Module appearance of compress structure module is more beautiful. Small size, less weight, easy to install and maintain.
  6. Performance of lifetime, working efficiency and characteristics are higher than solder structure module.
  7. European mode module package of T series is available to be provided.

Technical specification

  1. Thyristor module in compress structure manufactured by RUNAU Electronics, range of ITAV from 90A to 1000A and VDRM/VRRM from 1200V to 4500V.
  2. The cooling mode of module ITAV less than 350A is air force cooling while more than 400A is air cooling or water cooling according to requirement of application.
  3. In order to ensure the thyristor module operating under the safe condition and normal performance, the current of thyristor module selected is recommended for 2-3 times of rated load current in addition to the load character.
  4. Thyristor module installed on air cooling heatsink, the thermal silica grease is suggested to be spread evenly between the module base plate and heatsink surface.      The fasten force of 4 bolts to fix module on heatsink should be even such the surface of module base plate and heatsink will be connected tightly in order to ensure the heat performance.

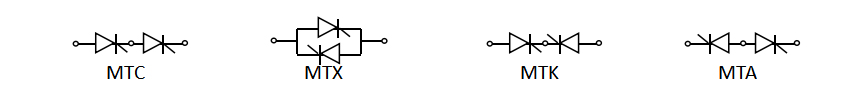

Connection Circuit

1



Parameter:

Type IT(AV)
@85℃
A
VDRM/VRRM
V
IDRM/IRRM
V=VDRM/VRRM
@125℃
Max mA
VTM
@25℃
Max / ITM
V    /   A
IGT
VD=12V
@25℃
mA
VGT
VD=12V
@25℃
V
IH
VD=12V
@25℃
mA
dV/dt
VD=2/3VDRM
@125℃
Min
V/μs
VISO
50Hz,RMS 2mA,1min @25℃
Min
V
Outline
MTC/MTK/MTA/MTX 1200-2000V (Air cooling)
MT*90-** 90 1200-2000 15 1.45 270 30-100 0.8-2.2 20-120 1000 2500 M2-20
MT*110-** 110 1200-2000 15 1.45 330 30-100 0.8-2.2 20-120 1000 2500 M2-20
MT*135-** 135 1200-2000 20 1.45 400 30-100 0.8-2.2 20-120 1000 2500 M2-34
MT*160-** 160 1200-2000 20 1.45 480 30-100 0.8-2.2 20-120 1000 2500 M2-34
MT*185-** 185 1200-2000 20 1.45 560 30-100 0.8-2.2 20-120 1000 2500 M2-34
MT*200-** 200 1200-2000 20 1.45 600 30-100 0.8-2.2 20-120 1000 2500 M2-36
MT*200-** 200 1200-2000 20 1.45 600 30-100 0.8-2.2 20-120 1000 2500 M4-53
MT*250-** 250 1200-2000 20 1.45 750 30-100 0.8-2.2 20-120 1000 2500 M4-53
MT*300-** 300 1200-2000 20 1.45 900 30-100 0.8-2.2 20-120 1000 2500 M4-53
MT*350-** 350 1200-2000 35 1.45 1050 30-100 0.8-2.2 20-120 1000 2500 M4-53
MT*400-** 400 1200-2000 45 1.45 1200 30-100 0.8-2.2 20-120 1000 2500 M4-63
MT*500-** 500 1200-2000 45 1.45 1500 30-100 0.8-2.2 20-120 1000 2500 M4-63
MT*600-** 600 1200-2000 55 1.45 1800 30-100 0.8-2.2 20-120 1000 2500 M4-66
MT*800-** 800 1200-2000 65 1.60 2400 30-100 0.8-2.2 20-120 1000 2500 M4-76
MT*1000-** 1000 1200-2000 65 1.60 3000 30-100 0.8-2.2 20-120 1000 2500 M4-77
MTC/MTK/MTA/MTX 2200-3500V (Air cooling)
MT*160-** 160 2200-3500 30 2.20 480 30-100 0.8-2.2 20-120 1000 2500-4000 M2-34
MT*200-** 200 2200-3500 35 1.80 600 30-100 0.8-2.2 20-120 1000 2500-4000 M4-53
MT*250-** 250 2200-3500 35 1.90 750 30-100 0.8-2.2 20-120 1000 2500-4000 M4-53
MT*300-** 300 2200-3500 35 1.90 900 30-100 0.8-2.2 20-120 1000 2500-4000 M4-53
MT*350-** 350 2200-3500 50 2.00 1050 30-100 0.8-2.2 20-120 1000 2500-4000 M4-53
MT*400-** 400 2200-3500 50 2.10 1200 30-100 0.8-2.2 20-120 1000 2500-4000 M4-63
MT*500-** 500 2200-3500 50 2.10 1500 30-100 0.8-2.2 20-120 1000 2500-4000 M4-63
MT*600-** 600 2200-3500 60 2.00 1800 30-100 0.8-2.2 20-120 1000 2500-4000 M4-66
MT*800-** 800 2200-3500 70 2.15 2400 30-100 0.8-2.2 20-120 1000 2500-4000 M4-76
MT*1000-** 1000 2200-3500 80 2.20 3000 30-100 0.8-2.2 20-120 1000 2500-4000 M4-77
MTC/MTK/MTA/MTX 3600-4500V (Air cooling)
MT*160-** 160 3600-4500 30 2.40 480 30-100 0.8-2.2 20-120 1000 4000-5000 M4-34
MT*200-** 200 3600-4500 35 2.00 600 30-120 0.8-2.2 20-120 1000 4000-5000 M4-53
MT*250-** 250 3600-4500 35 2.10 750 30-120 0.8-2.2 20-120 1000 4000-5000 M4-53
MT*300-** 300 3600-4500 35 2.20 900 30-120 0.8-2.2 20-120 1000 4000-5000 M4-53
MT*350-** 350 3600-4500 35 2.20 1050 30-120 0.8-2.2 20-120 1000 4000-5000 M4-53
MT*400-** 400 3600-4500 70 2.50 1200 30-120 0.8-2.2 20-120 1000 4000-5000 M4-63
MT*500-** 500 3600-4500 70 2.60 1500 30-120 0.8-2.2 20-120 1000 4000-5000 M4-63
MT*600-** 600 3600-4500 70 2.50 1800 30-120 0.8-2.2 20-120 1000 4000-5000 M4-66
MT*800-** 800 3600-4500 80 2.40 2400 30-120 0.8-2.2 20-120 1000 4000-5000 M4-76
MT*1000-** 1000 3600-4500 80 2.50 3000 30-120 0.8-2.2 20-120 1000 4000-5000 M4-77
MTC/MTK/MTA/MTX 1200-2000V (Water cooling)
MT*400-** 400 1200-2000 35 1.50 1200 30-100 0.8-2.2 20-120 1000 2500 M4-53-S
MT*500-** 500 1200-2000 45 1.60 1500 30-100 0.8-2.2 20-120 1000 2500 M4-63-S
MT*600-** 600 1200-2000 55 1.50 1800 30-100 0.8-2.2 20-120 1000 2500 M4-66-S
MT*800-** 800 1200-2000 65 1.60 2400 30-100 0.8-2.2 20-120 1000 2500 M4-76-S
NOTE:*-connection mode   **-module voltage



YpackTM Series High Standard Thyristor Module



Type IT(AV)
@85℃
A
VDRM/VRRM
V
IDRM/IRRM
V=VDRM/VRRM
@125℃
Max mA
VTM
@25℃
Max / ITM
V    /   A
IGT
VD=12V
@25℃
mA
VGT
VD=12V
@25℃
V
IH
VD=12V
@25℃
mA
dV/dt
VD=2/3VDRM
@125℃
Min
V/μs
VISO
50Hz,RMS 2mA,1min @25℃
Min
V
Outline
YpackTM High Reliability Thyristor Module
TT160-** 160 1200-2000 20 1.45 480 30-100 0.8-2.2 20-120 1000 2500 M2-34
TT200-** 200 1200-2000 20 1.45 600 30-100 0.8-2.2 20-120 1000 2500 M2-34
TT250-** 250 1200-2000 20 1.45 750 30-100 0.8-2.2 20-120 1000 2500 M4-50
TT300-** 300 1200-2000 35 1.45 900 30-100 0.8-2.2 20-120 1000 2500 M4-50
TT400-** 400 1200-2000 45 1.45 1200 30-100 0.8-2.2 20-120 1000 2500 M4-60
TT500-** 500 1200-2000 55 1.45 1500 30-100 0.8-2.2 20-120 1000 2500 M4-60
TT570-** 570 1200-2000 65 1.45 1500 30-100 0.8-2.2 20-120 1000 2500 M4-60
YpackTM Single Thyristor Module
TZ400-** 400 1200-2000 45 1.50 1200 30-100 0.8-2.2 20-120 1000 2500 DM4-50
TZ500-** 500 1200-2000 45 1.60 1500 30-100 0.8-2.2 20-120 1000 2500 DM4-50
TZ600-** 600 1200-2000 50 1.50 1800 30-100 0.8-2.2 20-120 1000 2500 DM4-70
TZ650-** 650 1200-2000 50 1.50 1950 30-100 0.8-2.2 20-120 1000 2500 DM4-70
TZ730-** 730 1200-2000 50 1.60 2190 30-100 0.8-2.2 20-120 1000 2500 DM4-70
NOTE:*-connection mode   **-module voltage

YpackTM series high standard thyristor module is packaged with YA and YC series chips. The device is designed for users with higher requirement and performance.We know that we only thrive if we can easily guarantee our combined cost competiveness and high-quality advantageous at the same time for 100% Original Factory China Photovoltaic Solar Power Panel Mono Half Cut 450W 460watt 470W Solar Module for Project, We now have developed a responsible name amongst many customers. Quality&customer very first are usually our constant pursuit. We spare no endeavours to help make much better solutions. Look forward to long-term cooperation and mutual advantages!
